Maine Accessibility Corporation - Home Elevator Division
Elevation Innovation Inteli-Lift
Elevation Innovation Inteli-Lift
Elevation Innovation Inteli-Lift

Elevation Innovation
Inteli-Lift 300/500

The Inteli-Lift 300/500 dumbwaiter system is a state-of-the-art design. From the ETL Certified digital controller (ETL file # 5020834), bi-parting and slide up gate systems to the very custom aluminum extrusion rail system that incorporates built in electrical chase ways, easy limit switch mounting and adjusting. The entire system has been engineered to be a long lasting, very durable, low maintenance and easy to assemble unit. All mild steel cabs are powder coated with a UL certified powder coating system. The standard cab is a one-piece machined mild steel with a powder coat finish or stainless steel as an upgrade.

Features

  • Intelligent Commercial Dumbwaiter controller (ETL file # 5020834)
  • Soft start and soft stop
  • Momentary push buttons with "in use" and "car here" lights
  • Optional arrival buzzer (can be turned off)
  • Optional additional 24 volt car here device remotely located to alert staff

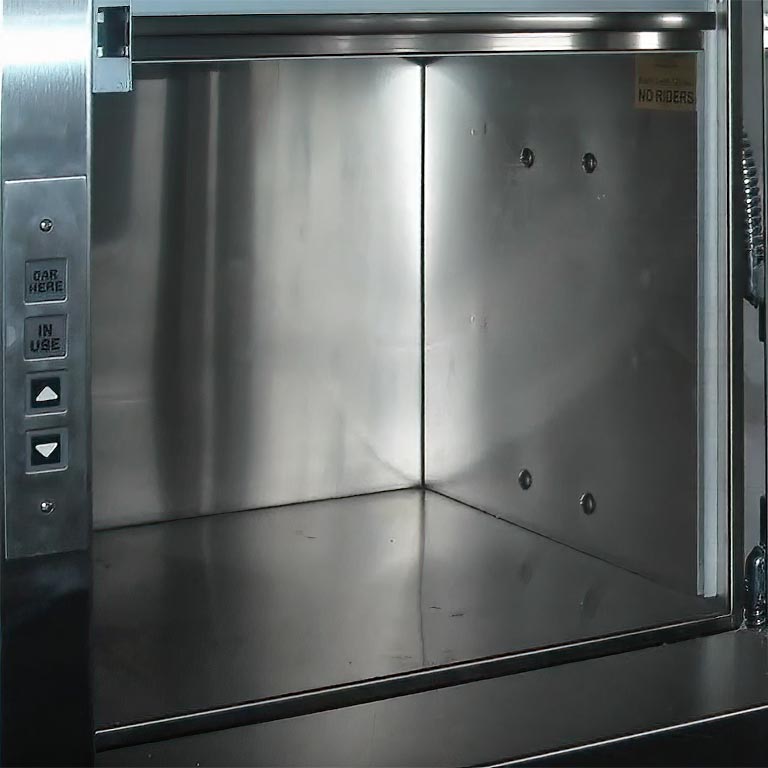

  • Stainless steel or Mild steel one piece cab
  • Custom aluminum rail system with electrical chase ways
  • Maintenance free 3 phase Bauer motor/gear assembly from Germany
  • Safety devices including slack cable, final top / lower limit and sling type A safety brake
  • Interlock door safety devices
  • 300 Lb or 500 Lb capacity
  • 50 feet per minute travel speed
  • Economical, reliable cable drive
  • Travel up to 75 feet and 9 stops
  • 230V dumb waiter operation single phase or three phase 50/60 Hz.
  • Bi-parting or slide up gate system, 3/4" thick door panels, solid and quiet
  • Car here LED
  • In use LED
  • 24 Volt LED car light
  • Select-able do not interrupt timer, select from 0 – 80 seconds

Options

  • Pre-Hung swing dumb waiter doors 90 minute rated stainless steel
  • Bi-parting or slide up 90 minute rated stainless or mild steel dumb waiter doors
  • Cab configurations including same side and front/back and 90*
  • 230 Volt 50/60 Hz dumb waiter operation
  • 24 Volt LED car light remotely located to alert staff
  • Remote 24V car here device of choice
  • Electrical disconnect

Warranty

Any new dumbwaiter sold and installed by Maine Accessibility comes with a 1-year labor warranty. If you have ANY problems with your dumbwaiter in the first year, we will come fix it free of charge.

Elevation Innovation also includes a 3 year limited warranty.
