Maine Accessibility Corporation - Home Elevator Division
Savaria Orion
Savaria Orion
Savaria Orion
Savaria Orion

Savaria Orion

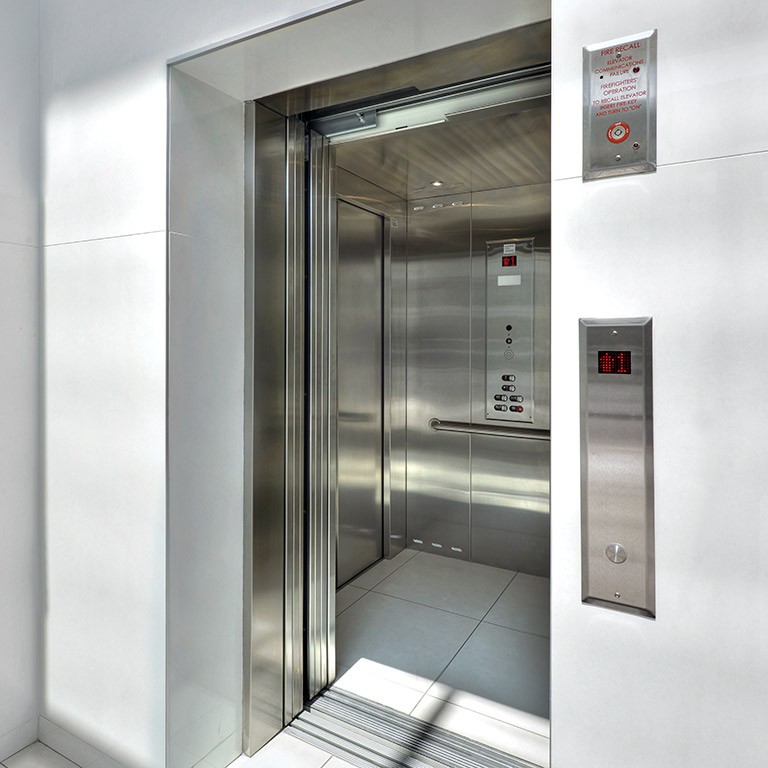

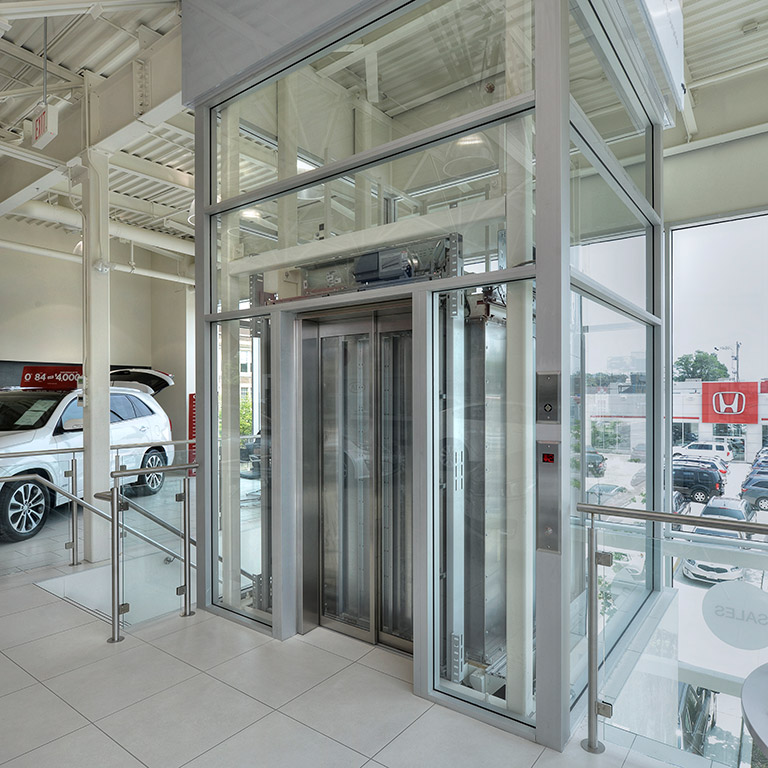

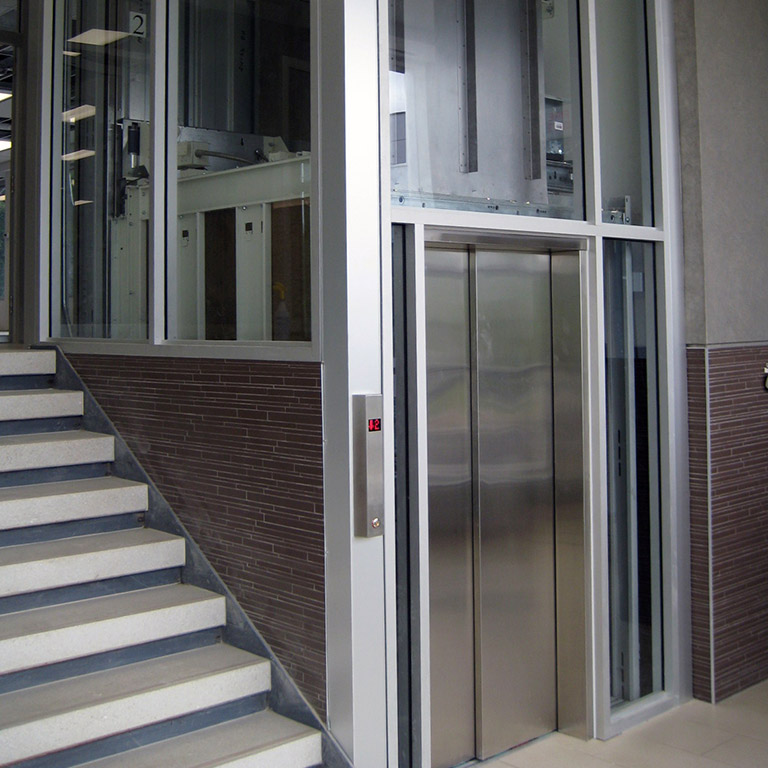

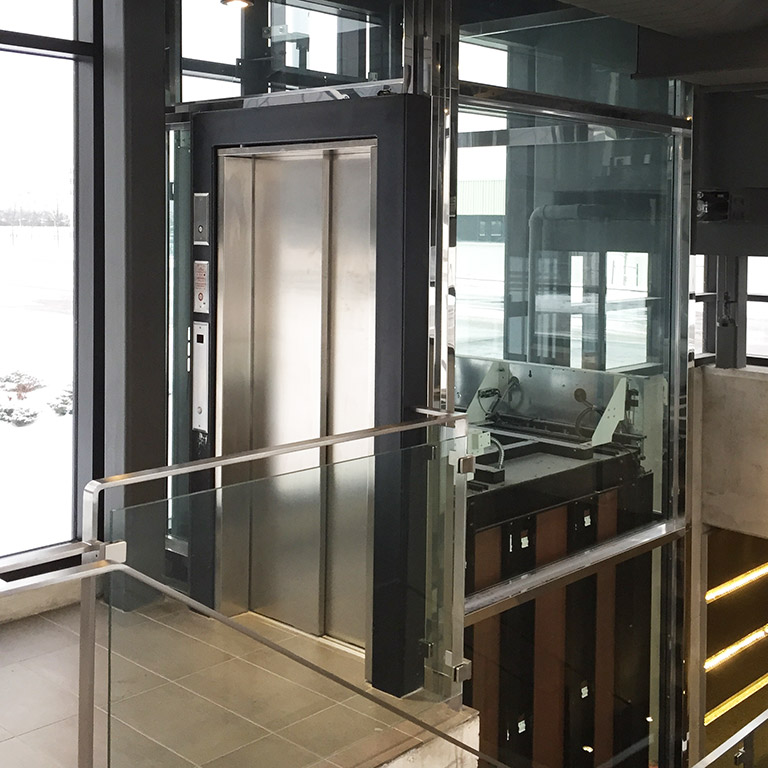

The Orion elevator is designed with features you would expect in a high-rise elevator but built for commercial low-rise buildings. The Savaria Orion elevator was designed for limited use/limited application (LU/LA) commercial projects and is well-suited for use in educational settings, places of worship and up to 3-story professional offices.

With the features you would expect to see in a high-rise elevator such as automatic sliding doors and commercial fixtures, the Orion elevator delivers a professional appearance and a smooth ride for passengers. The Orion is cost-effective solution to ADA-compliant accessibility that meets state and national codes for LU/LA elevators.

Homeowners also choose the Orion elevator when looking for a more commercial-grade style. Upgrades for the Orion include stainless steel two-speed doors to deliver a modern and sleek look.


  • High-rise style, built for low-rise applications: Affordable elevator for low-rise buildings with 1400 lb capacity and automatic door option.
  • Aesthetically appealing: Attractive call station, control panel and digital floor indicators.
  • High efficiency hydraulic drive system: Smooth ride, start and stop.
  • Variable speed pressure valve: Gradual acceleration and deceleration of cab.
  • Other standard features: Fully automatic operation, modular rail construction for easy construction, automatic cab on/off interior lighting, digital display in car operating panel, white ceiling with 4 pot lights, steel interior in choice of laminate colors.
  • Standard finishes: Standard architectural white or black steel, stainless steel car operating panel, handrail and stainless color trimmed light fixtures.
  • Safety features: Emergency battery back-up for lowering and interior lighting, emergency stop and alarm buttons, emergency manual lowering, safety brakes, floor specific battery lowering, negative pressure valve.


  • Optional Configurations: Type 1, 2, 3 and 4
  • Platform Sizes:
    • W48'' x L54'' x H84'' (1219 mm x 1371 mm x 2134 mm), Type 1, 2, 3, 4
    • W42'' x L60'' x H84'' (1067 mm x 1524 mm x 2134 mm), Type 1, 2, 3, 4
    • W51'' x L51'' x H84'' (1295 mm x 1295 mm x 2134 mm), Type 1, 2, 3, 4
    • W54'' x L54'' x H84'' (1371 mm x 1371 mm x 2134 mm), Type 1, 2, 3, 4 (This size is not LU/LA Compliant)
  • Optional Cab Finishes: Choose from architectural white or black steel with plastic laminate overlays
  • Optional Fixture Finishes: Brass
  • Other Options: Up to 4 stops, hands-free phone, telephone cabinet with choice of finish, manual or automatic fire-rated folding gate, two-speed steel doors with infrared door closing sensors in black, architectural white or stainless steel, fire rated landing doors, overspeed governor, fire recall service, pro-manual or auto swing doors, buffer springs.


  • Applications: Commercial (LU/LA), residential, indoors
  • Capacity: 1400 lb (635 kg)
  • Speed: 30 ft/min (0.15 m/s)
  • Maximum travel: 300″ (25', 7.6 m), with up to 6 stops
  • Drive/Motor: 1:2 cable hydraulic drive, 5 hp submersed motor
  • Minimum Overhead Clearance: 108″ (2743 mm)
  • Minimum Pit: 14″ (355 mm)
  • Power Supply: 208 volt, three phase, 60 Hz, 30 amps or 240 volt, single phase, 40 amps, 60 Hz


Any new elevator sold and installed by Maine Accessibility comes with a 1-year labor warranty. If you have ANY problems with your lift in the first year, we will come fix it free of charge.

If anything happens after the first year, Savaria also includes a 36 months parts warranty on almost everything but batteries. You just pay labor. Please see complete details and exclusions here.
