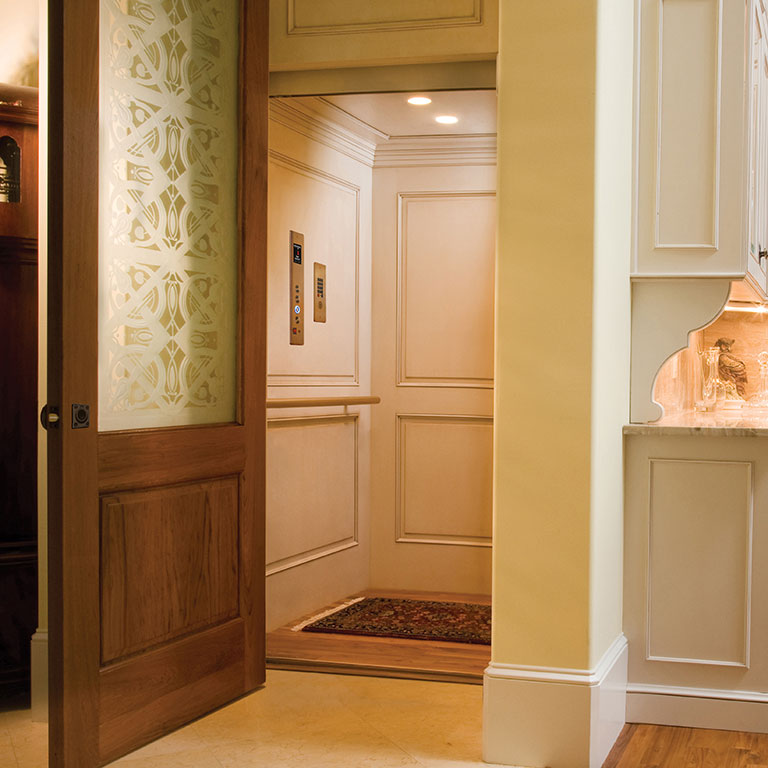

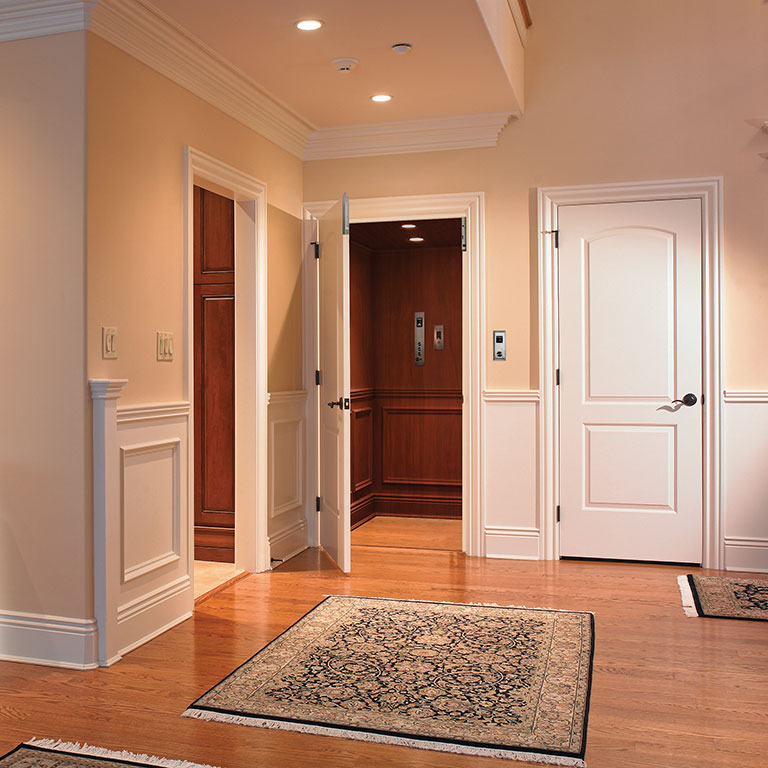

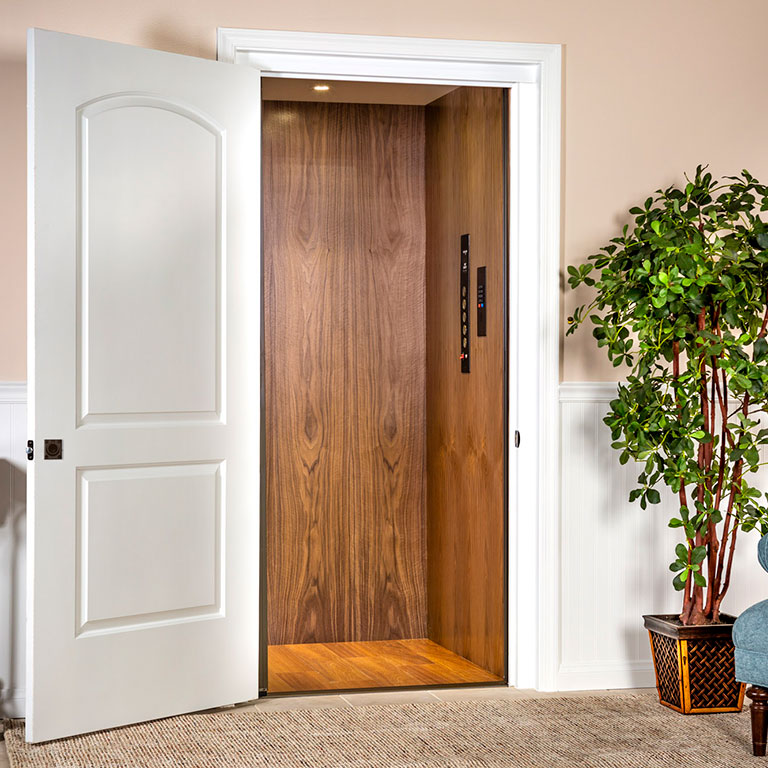

Inclinator Elevette
Inclinator Elevette
Inclinator Elevette

Inclinator Elevette

Inclinator handcrafts each elevator, allowing you to select from more car widths, depths and heights than any other elevator manufacturer. Inclinator elevators can have up to three door openings in any configuration. Whether you simply want accessibility, or an elegant design with custom features, Inclinator can make an elevator to compliment your home design. They offer almost endless possibilities by letting you customize everything, including woods and finishes, handrails, lighting, gates and control plates.

With five standard cab styles, four types of drive systems, 26 door configurations, and many features and accessory options, the customization is loved by both owners and architects. The Elevette can serve multiple floors of landings, with doors on up to three sides of the cab, and with up to a 1000 pound capacity and up to an 18 square feet cab size, this elevator can take whatever load you need it for.

Make your home more appealing! Whether for use, entertainment, or sale, your guests will know they can access all floors with ease. With the reliability and beauty of Inclinator, you can even increase the value of your home in many cases, and it only takes up the space of a closet. So if you're building new, renovating, adding on, or just thinking of adding accessibility with style, the Inclinator Elevette has you covered.

Safety Features

  • Gate Safety Switch: Requires the gate to be closed while the car is moving.
  • Car Floating Gate Switch: Stops the car when an object extends through the gate and moves it up or down.
  • Key Lockout: Renders the call station inoperable.
  • Gate and Door Open Safeties: Stops the car if the gate or door is opened.
  • Instantaneous Dual Cable Safeties: Holds the car in case or drive system failure.
  • Overrun Switch: Stops the car if it moves too close to the end of the rail.

Options

  • Car Configurations: Type 1, 2, 3, 4, 5, and 6 (See planning guide)
  • Car Styles:
    • Elevette 100: 3/4" Plywood panels with Wilsonart or Formica laminate including matching laminated endcaps; door openings on up to 3 sides; automatic safety devices; collapsible or accordion fold gate.
    • Elevette 200: Smooth hardwood veneer panels with square, flush corners; door openings on up to 3 sides; Hardwood veneer floor with multiple wood species and stains available; in-shaft design; automatic safety devices; collapsible or accordion fold gate.
    • Elevette 300: Smooth hardwood center panels with crown, chair, baseboard and picture molding; door openings on up to 3 sides; Hardwood veneer floor, painted or unpainted, with multiple wood species and stains available; in-shaft design; automatic safety devices; collapsible or accordion fold gate.
    • Elevette 400: Solid wood with hardwood veneer raised or recessed center panels; 2-over-2 or 1-over-1 panel configuration; door openings on up to 3 sides.; Hardwood veneer floor, painted or unpainted, with multiple wood species and stains available; in-shaft design; automatic safety devices; collapsible or accordion fold gate.
  • Handrails: Wood, flat or round stainless steel, flat or round brass, or regular or oil-rubbed round bronze available
  • Light Options:
    • Standard Six Inch Downlight with Glass Lens with brass, white, polished stainless steel, duran tic, or bronze trim ring
    • 2" x 9-1/2" x 9-1/2" surface mounted light flush with dome
    • Six inch downlight with black cove baffle and white trim ring flush with dome
  • Gate Options:
    • Metal scissor-type collapsible gate with silver, bronze, oil-rubbed bronze, brass, or duranotic finish.
    • Accordion fold gate with a combination of solid and vision panels fabricated from hardwood, vinyl laminate, and acrylic with a metal finish
  • Hall and Car Operating Panels: Available in multiple metal finishes
  • Telephone Box: Available in brushed stainless steel, brass, or bronze finishes
  • Auto Openers: Available for both doors and accordion gates

Drive Systems

Cable Drum Drive System

Features

  • Quietest in the industry
  • Patented monorail guiding system
  • 500 lb. or 750 lb. capacity
  • Can accommodate car size up to 12 sq. feet
  • Optional emergency battery lowering, and/or soft start

Technical Specifications

  • Capacity: 500 lbs or 750 lbs
  • Car Size: Up to 12 sq ft
  • Speed: 30 ft/min
  • Maximum travel: 50′
  • Drive System: Cable drum drive with soft start enhancement; monorail guiding system; optional emergency battery lowering
  • Minimum Overhead Clearance: 12" above top of car
  • Minimum Pit: 6" required, 12" recommended
  • Power Supply: 230 volt, 30 amp, single phase, 60 Hertz with 20 amp delay fuse, or 208 volt, single phase with power boost transformer and 20 amp time delay fuse
  • Controller: Relay Logic with programmable drive and built-in soft start function
  • Stops: up to 6

Hydraulic Drive System

Features

  • Smooth, quiet ride
  • Patented monorail guiding system
  • 750 lb. or 900 lb. capacity
  • Can accommodate car size up to 15 sq. feet
  • Emergency battery lowering

Technical Specifications

  • Capacity: 750 lbs or 900 lbs
  • Car Size: Up to 15 sq ft
  • Speed: 36 ft/min
  • Maximum travel: 50′
  • Drive System: Hydraulic drive; monorail guiding system; emergency battery lowering
  • Minimum Overhead Clearance: 12" above top of car
  • Minimum Pit: 6" required, 12" recommended
  • Power Supply: 230 volt, 30 amp, single phase, 60 Hertz with 20 amp delay fuse, or 208 volt, single phase with power boost transformer and 20 amp time delay fuse
  • Controller: Relay Logic with adjustable hydraulic valve controls
  • Stops: up to 6

Warranty

Any new elevator sold and installed by Maine Accessibility comes with a 1-year labor warranty. If you have ANY problems with your lift in the first year, we will come fix it free of charge.

If anything happens after the first year Inclinator carries a 3-year warranty on parts and a 5-year warranty on the motor.
