Savaria Eclipse
Savaria Eclipse
Savaria Eclipse

Savaria Eclipse

The Eclipse residential elevator is a smooth riding elevator that doesn't require a separate machine room so it takes less space in the home and usually takes less time to install than hydraulic elevators. Construction requirements for the Eclipse are simpler than some other home elevators, making it easier to install into an existing home.

Order your Eclipse elevator customized to your needs with an extensive menu of options. Choose from our standard melamines for your interior finish, or upgrade to wood veneer, available in a range of finishes. For the ultimate in luxury, select a hand-crafted hardwood interior stained in your choice of color. Your Eclipse elevator can also be ordered in MDF and finished on site by your contractor to match your current home finishes.

The Eclipse elevator can be the perfect complement to your home. Remove the burden of stairs and enhance your home with this fine elevator from Savaria.


  • Machine roomless: Less space required for the installation. Usually less installation time required.
  • Compact chain drive system: Requires only 8' ceilings. No ceiling shaftway construction is required.
  • Hide-away gate: Innovative gate system tucks away for maximum entryway and interior space.
  • Easy-access service panel: Service panel can be located inside or outside the hoistway making it accessible for maintenance.
  • Other standard features: Fully automatic operation, modular rail construction for easy construction, automatic cab on/off interior lighting, digital display in car operating panel, white ceiling with 4 halogen pot lights, melamine interior in choice of colors.
  • Standard finishes: Flat melamine or unfinished MDF (see color chart), stainless steel, clear or bronze anodized aluminum cab operating panel and hall call stations, plywood floor, white ceiling.
  • Safety features: Battery operated (UPS) emergency lowering and lighting, hand-crank manual lowering, motorized braking, lockable control panel, elevator door interlocks, emergency stop switch, in-use indicator lights on hall station, slack chain brake system.


  • Optional Configurations: Type 1, 2, 3, 4 and 5
  • Platform Sizes:
    • W36″ x L48″ x H80″ (914 mm x 1219 mm x 2032 mm), Type 1, 2, 3, 4, 5
    • W36″ x L54″ x H80″ (914 mm x 1371 mm x 2032 mm), Type 1, 2, 3, 4, 5
    • W36″ x L60″ x H80″ (914 mm x 1524 mm x 2032 mm), Type 1, 2, 3, 4, 5
    • W40″ x L54″ x H80″ (1067mm x 1371 mm x2032 mm), Type 1, 2, 3, 4, 5
  • Optional Height: 96″

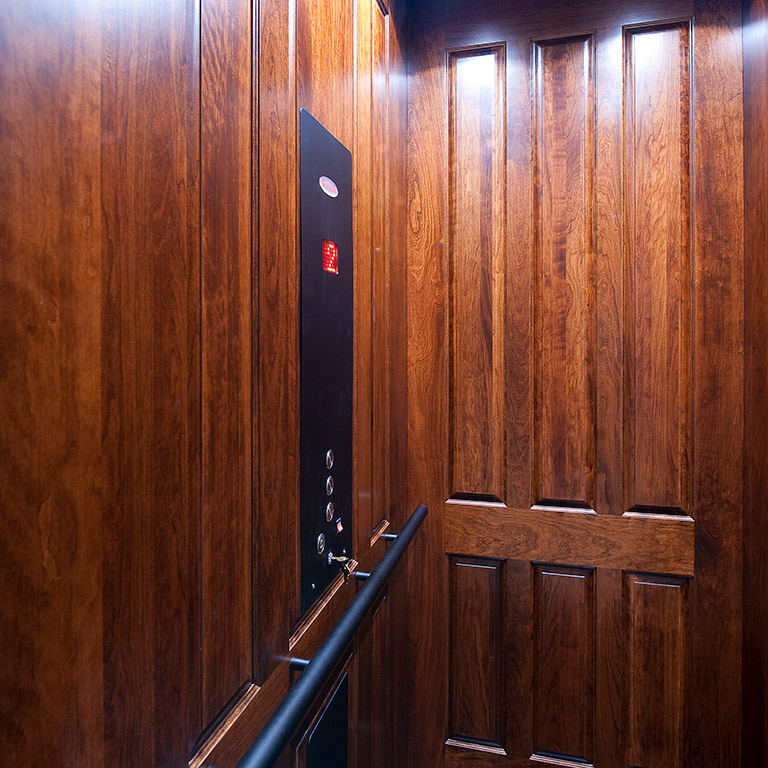

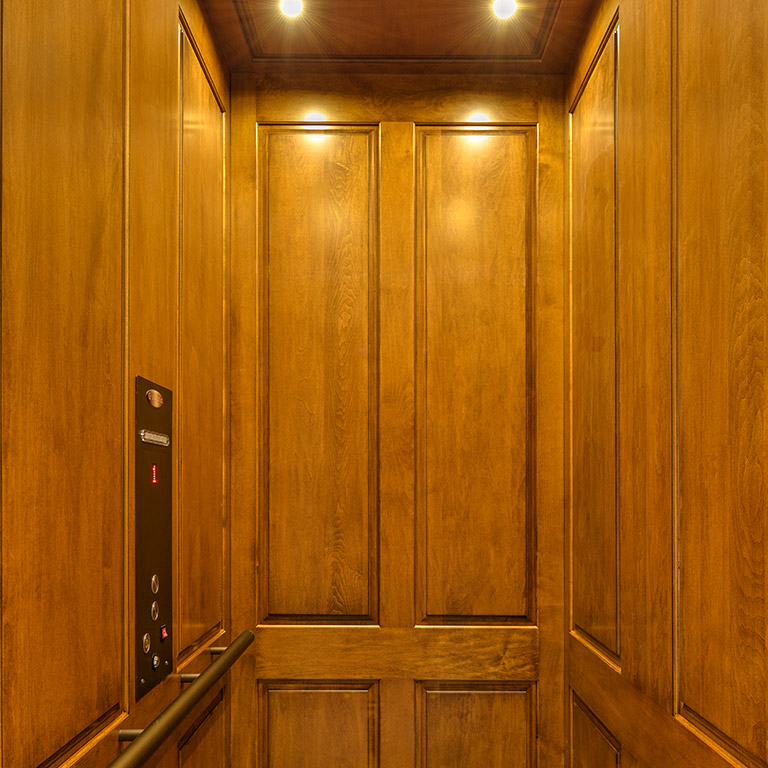

  • Optional Cab Finishes: Harwood, unfinished veneer, white lacquered MDF (see color chart)
  • Optional Fixture Finishes: Brass #4 finish (handrail, cab operating panel, hall call station). Hall call stations available in rectangular or oval design.
  • Doors and Gate Options: Panel-fold gate in clear anodized aluminum with clear acrylic inserts, or anodized bronze with bronze acrylic inserts, Visi-fold gate anodized bronze with bronze acrylic, Clear-fold gate in clear anodized aluminum with clear acrylic inserts. Power gate and door operators. For the ultimate in convenience, add Savaria automatic slim doors for complience with the upcoming code change!
  • Other Options: Up to 6 stops, machine roomless controller in hoistway, telephone cabinet, alpha-numeric button marking, two-exit opening, speed upgrade to 50 fpm subject to local code, buffer springs, keyed hall call station, interlocks (Kwiklock, EMI).


  • Applications: Residential, indoors
  • Capacity: 750 lb (340 kg), 950 lb (431kg), 1000 lb (453 kg)
  • Speed: 40 ft/min (0.20 m/s)
  • Maximum travel: 60′ (18.29 m) with up to 6 stops and 2 openings
  • Drive/Motor: 2 hp with geared roller chain variable frequency drive
  • Minimum Overhead Clearance: 96″ (2838 mm)
  • Minimum Pit: 6″ (152 mm)
  • Power Supply: 230 volts, single phase, 60 Hz, 20 amps, 30 amp fused disconnect box with 20 amp fuse


Any new elevator sold and installed by Maine Accessibility comes with a 1-year labor warranty. If you have ANY problems with your lift in the first year, we will come fix it free of charge.

If anything happens after the first year, Savaria also includes a 36 months parts warranty on almost everything but batteries. You just pay labor. Please see complete details and exclusions here.
