Stiltz Duo Alta
Stiltz Duo Alta
Stiltz Duo Alta

Stiltz Duo Alta

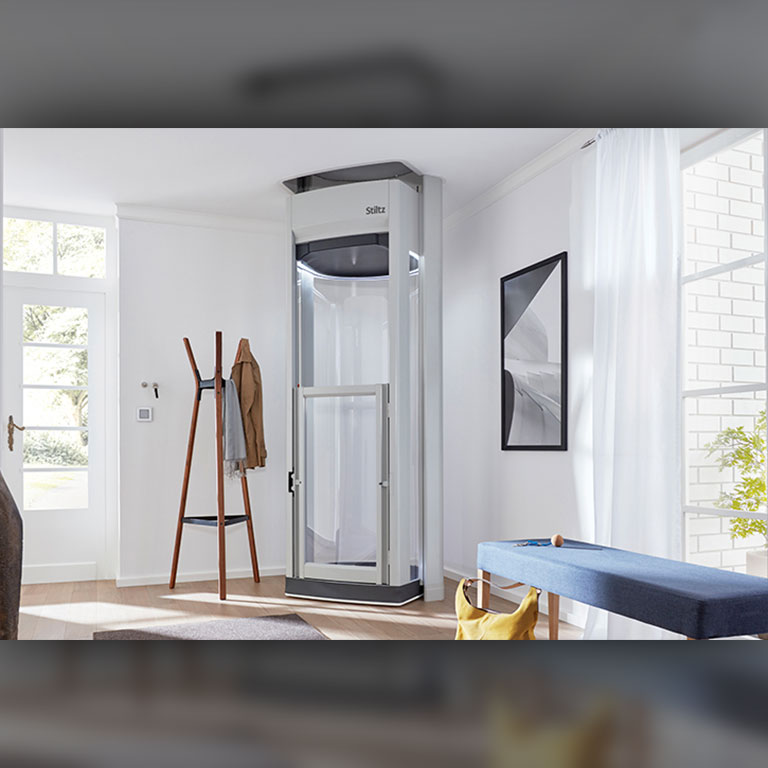

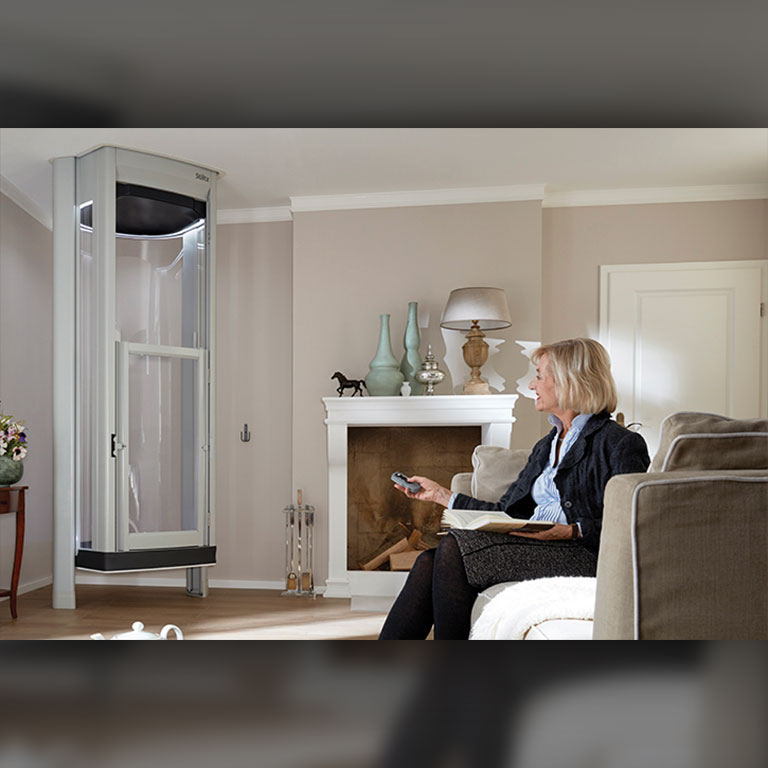

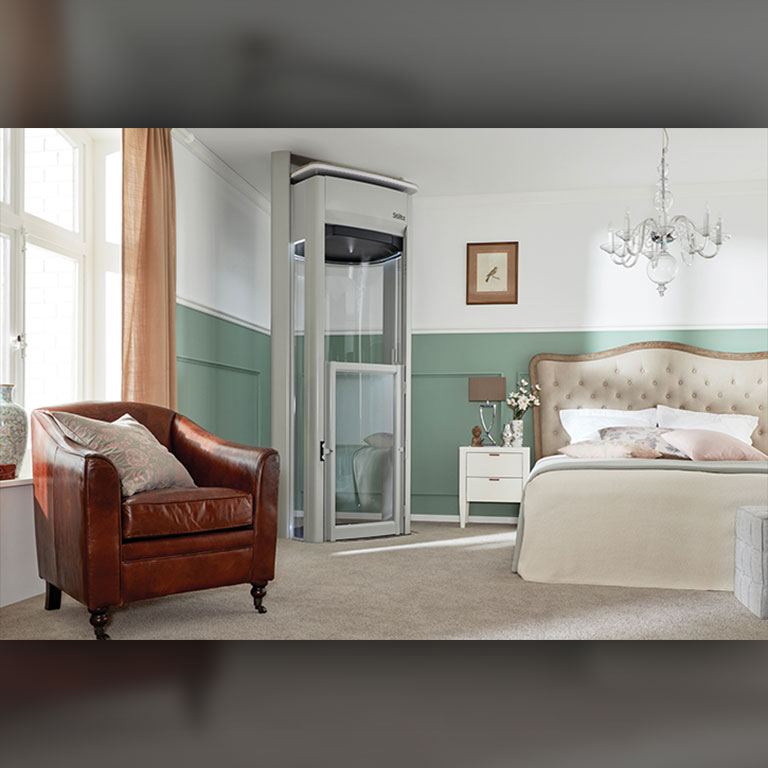

The Stiltz Duo Alta through-floor homelift is designed to make it easier for you to move around the house. Whether you're starting to find the stairs a bit much, or are planning ahead by future-proofing, you will find a Duo Alta will fit discreetly into any home.

A Duo Alta is elegantly curved, and with its clear car body it will perfectly compliment your style of decor. It's so versatile that it can be installed in the corner of a room, in a closet or in a stairwell void. Alternatively, it can take pride of place in the center of a room or entrance hallway.


  • Standard Finishes: The Duo Alta is finished in grey, while the Classic elevators have a neutral cream exterior with a matching beige interior lining colour.
  • Half Height Door: The door is interlocked and is made to match the finish of the elevator.
  • 2 x Remote Controls: Call and send the lift remotely and also use it to move heavy or awkward items between floors.
  • Two Year Warranty: All Stiltz Elevators carry a standard two-year parts warranty.
  • Internal LED Downlights: These are programmed to turn on once the user has entered the elevator and remain on for the entire journey.
  • Battery Back Up System: If there is a power cut while using the elevator, it can be driven to the lower level of the home and will then wait until the power comes back on to resume normal service.
  • Half Height Light Curtain: Comes as standard on all Stiltz home elevators.
  • Interior Telephone: In the very unlikely event that the elevator stops while you are travelling in it, help is just a phone call away with a phone fitted as standard in all Stiltz home elevators.


  • In-Car Seat: This is a popular option selected by customers. The Classic range accommodates a fold-down seat while the Duo Alta has a stylish, moulded perch seat.
  • Interior Grab Rail: Offers increased security for the occupants of the elevator.
  • Full Height Door: An interlocked door that replaces the half-height door.


  • Drive: Roped drum, braked gear motor drive
  • Power Supply: 220 – 240v AC / 5 Amps – will work off 110v with step-up transformer
  • Maximum Load: 375lb / 170kg (2 persons standing or 1 person sitting)
  • Maximum Travel: 4.7 inch / second
  • Entrance Security: Half height light curtain / obstruction sensor – optional full height door
  • Maximum Speed: 5.9 inches / second
  • Warranty: 2 year parts
  • Rope Diameter: 6mm Galvanized steel rope
  • Additional Sensors: Out-of-balance & overload detection and light curtain
  • Lighting Type: 2 x 3w LED downlights
  • Landing Call Stations: 2 wireless remote controls
  • Installation: Typical installation takes one day
  • Operation: Hold-to-run controls
  • Configuration: Single entry door or ThruCar (Duo Classic only)


Any new elevator sold and installed by Maine Accessibility comes with a 1-year labor warranty. If you have ANY problems with your lift in the first year, we will come fix it free of charge.

All Stiltz Elevators carry a standard two-year parts warranty.
