Stiltz Trio Alta
Stiltz Trio Alta
Stiltz Trio Alta

Stiltz Trio Alta

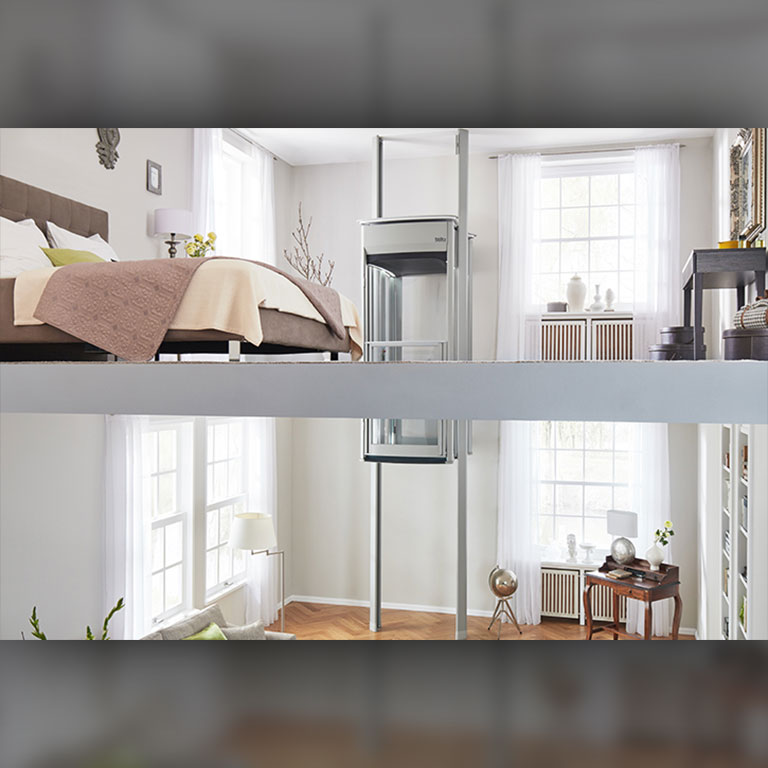

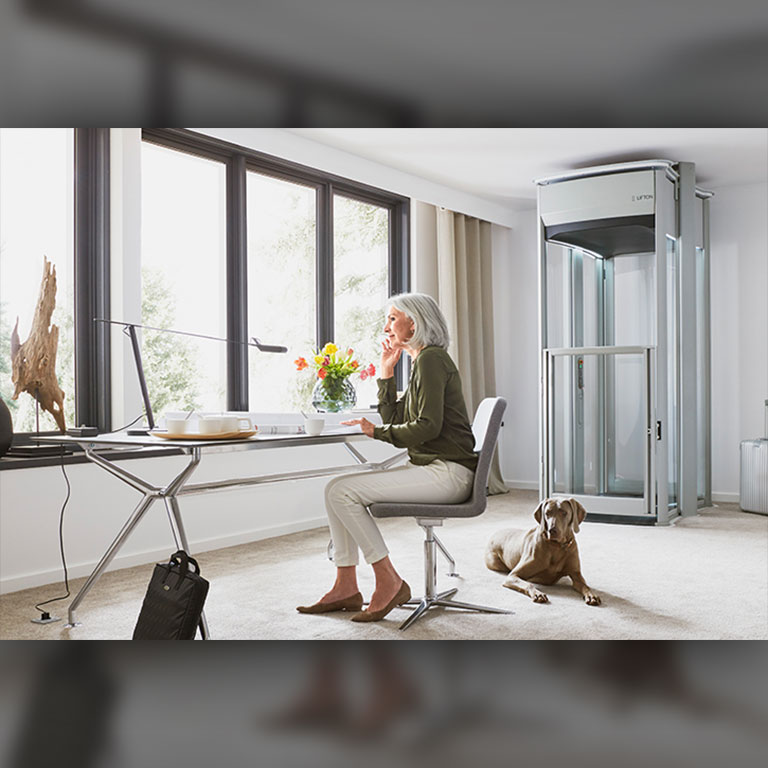

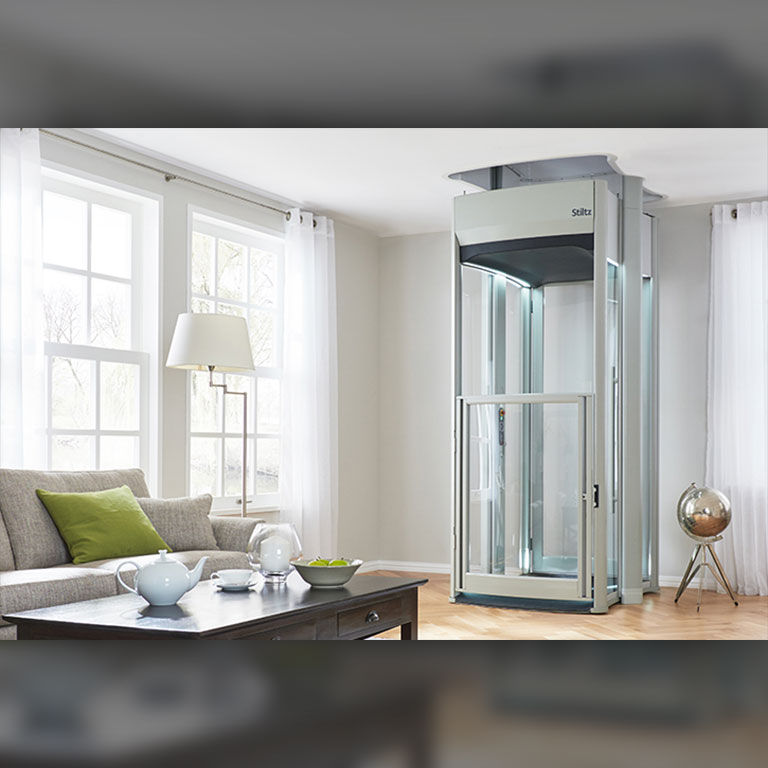

The Stiltz Trio Alta has been designed to offer more space and luxury for homeowners who need a larger lift for their home.

The combination of style and practicality has been perfectly balanced with the Trio Alta. Thanks to its size and weight capacity it can comfortably accommodate a full-sized wheelchair. The gently-angled integral ramp and the wider entrance/exit space helps make access very simple.

Just like the Duo Alta, the Trio Alta HomeLift will install quickly without any need for load-bearing walls, travel quietly and use minimal power when moving between floors.


  • Standard Finishes: The Trio Alta is finished in grey, while the Classic elevators have a neutral cream exterior with a matching beige interior lining colour.
  • Half Height Door: The door is interlocked and is made to match the finish of the elevator.
  • 2 x Remote Controls: Call and send the elevator remotely and also use it to move heavy or awkward items between floors.
  • Two Year Warranty: All Stiltz Elevators carry a standard 24 months parts warranty.
  • Internal LED Downlights: These are programmed to turn on once the user has entered the elevator and remain on for the entire journey.
  • Battery Back Up System: If there is a power cut while using the elevator, it can be driven to the lower level of the home and will then wait until the power comes back on to resume normal service.
  • Half Height Light Curtain: Fitted as standard.
  • Interior Telephone: In the very unlikely event that the elevator stops while you are travelling in it, help is just a phone call away with a phone fitted as standard in all Stiltz Home Elevators.


  • In-Car Seat: This is a popular option selected by customers. The Classic range accommodates a fold-down seat while the Trio Alta has a stylish, moulded perch seat.
  • Interior Grab Rail: Offers increased security for the occupants of the elevator.
  • Full Height Door: An interlocked door that replaces the half-height door option.


  • Drive: Roped drum, braked gear motor drive
  • Power Supply: 230V AC | 5 amps –  – will work off 110v with step-up transformer
  • Maximum Load: Trio Alta | 230kg | 39st | 500lbs
    Trio Classic | 220kg | 35st | 485lbs
  • Maximum Travel: 157 inches (13ft 2in)
  • Entrance Security: Half height light curtain / obstruction sensor – optional full height door
  • Maximum Speed: 5.9 inches / second
  • Warranty: 2 year parts warranty
  • Rope Diameter: 6mm Galvanized steel rope
  • Additional Sensors: Out-of-balance & overload detection and light curtain
  • Lighting Type: 4 x 3w LED downlights
  • Landing Call Stations: 2 Wireless remote controls
  • Installation: Typical installation takes two days
  • Operation: Hold-to-run controls
  • Configuration: Single entry or double entry / ThruCar


Any new elevator sold and installed by Maine Accessibility comes with a 1-year labor warranty. If you have ANY problems with your lift in the first year, we will come fix it free of charge.

All Stiltz Elevators carry a standard two-year parts warranty.
